Sunstone Battery Management System for Lead Acid Battery

SBMS-LAB, the Sunstone Battery Management System for Lead Acid Battery, is adopted leading edge technology in the industry, can be completely automated measuring individual battery parameter. Analysing and tracking all battery data and automatically generates an early alarm for the falling battery.
Monolithic modular design, flexible installation for various applications and unlimited for expansion.
It can be applied in various scenarios such as telecommunications base stations, data centers, banks, aviation, and railways.

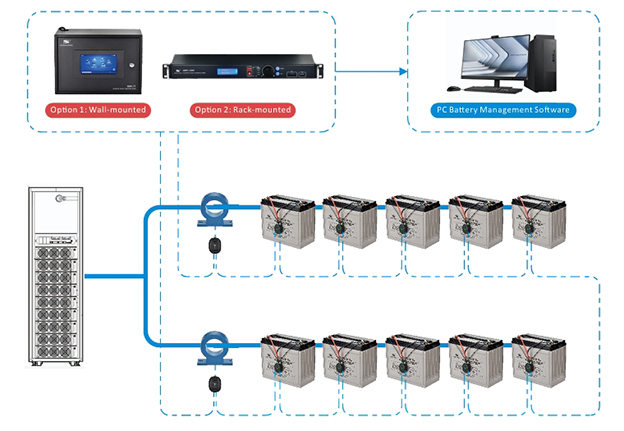

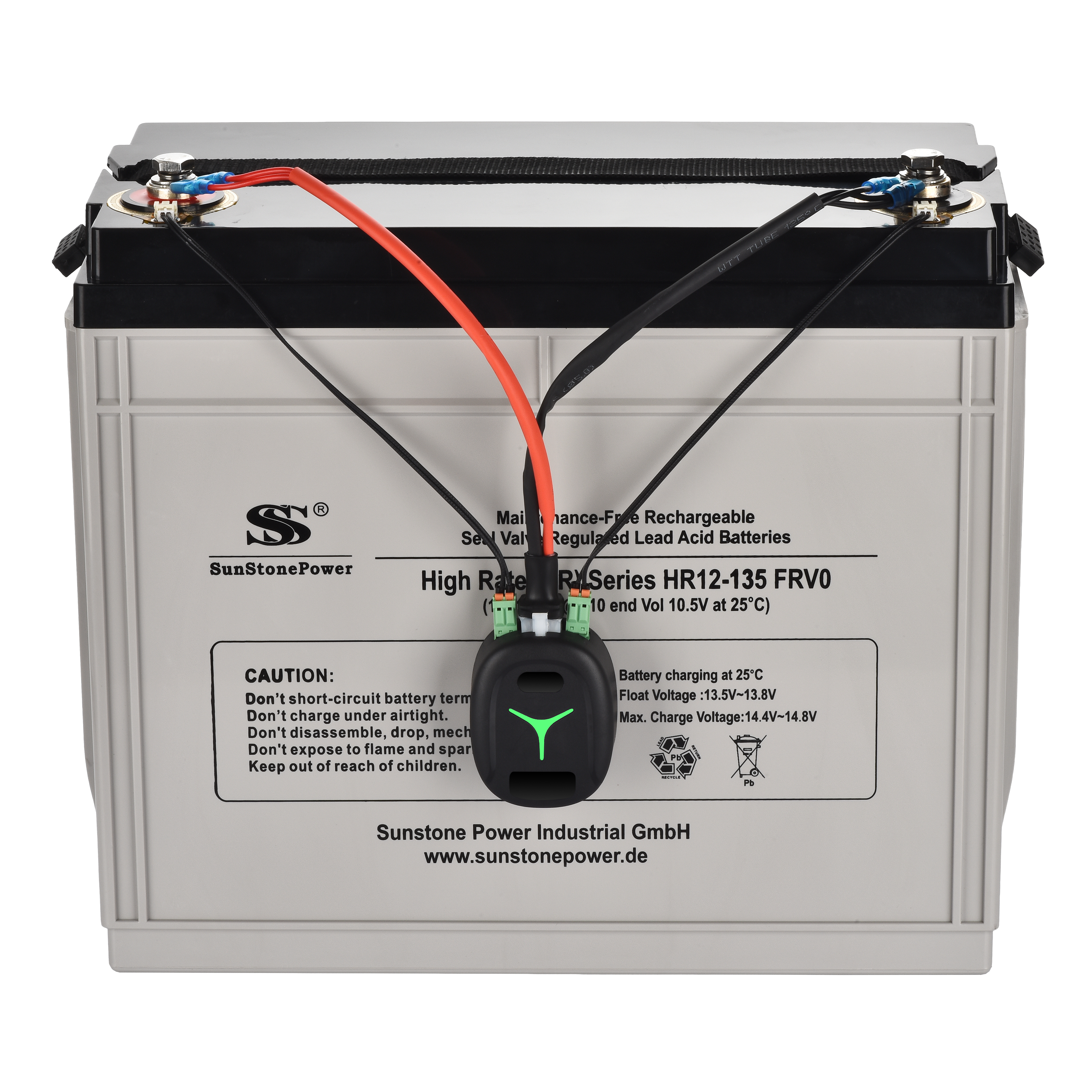

SBMS-LAB, composed of a Battery Sensor, Current Detector, Control Module, and Battery Management Software, fully complies with IEEE1188-2005.

Measurable Parameter

• Block Voltage
• Negative Pole Temperature
• Ambient Temperature
• Block Internal Resistance
• String Current
• Total Voltage
• SOC & SOH

Modular Design

• Fast to Detect Failed Battery
• Easy to Install and Maintain
• Used for Various Application
• Unlimited for Expansion
• Electrical Isolation
• Accurated 4 Wire Method

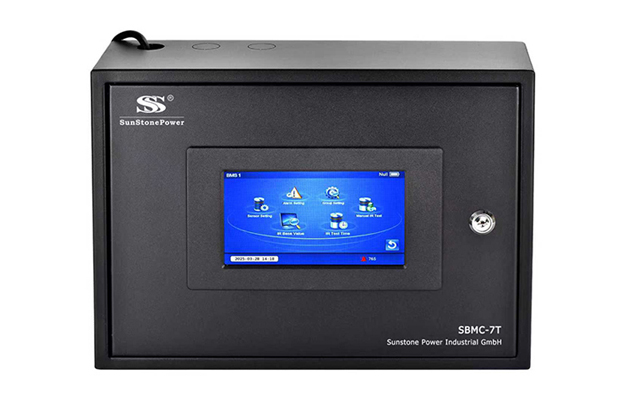

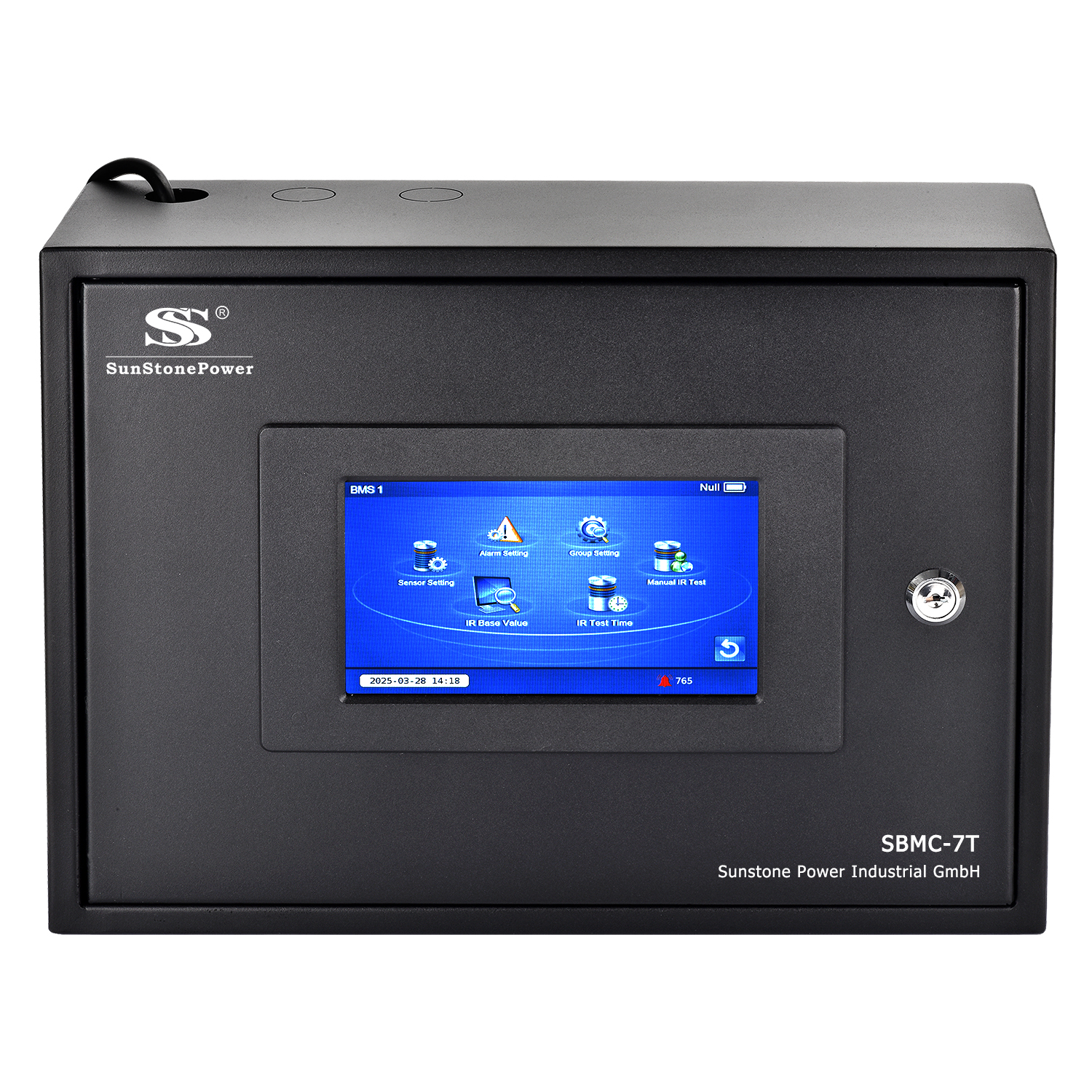

Control Module Option 1: Touch Panel 7 Inch

• Continuously data monitored, analyzed and uploaded.
• Interface: RS485, RJ45
• Protocol: Modbus TCP/RTU
• Manage up to 254 blocks batteries.

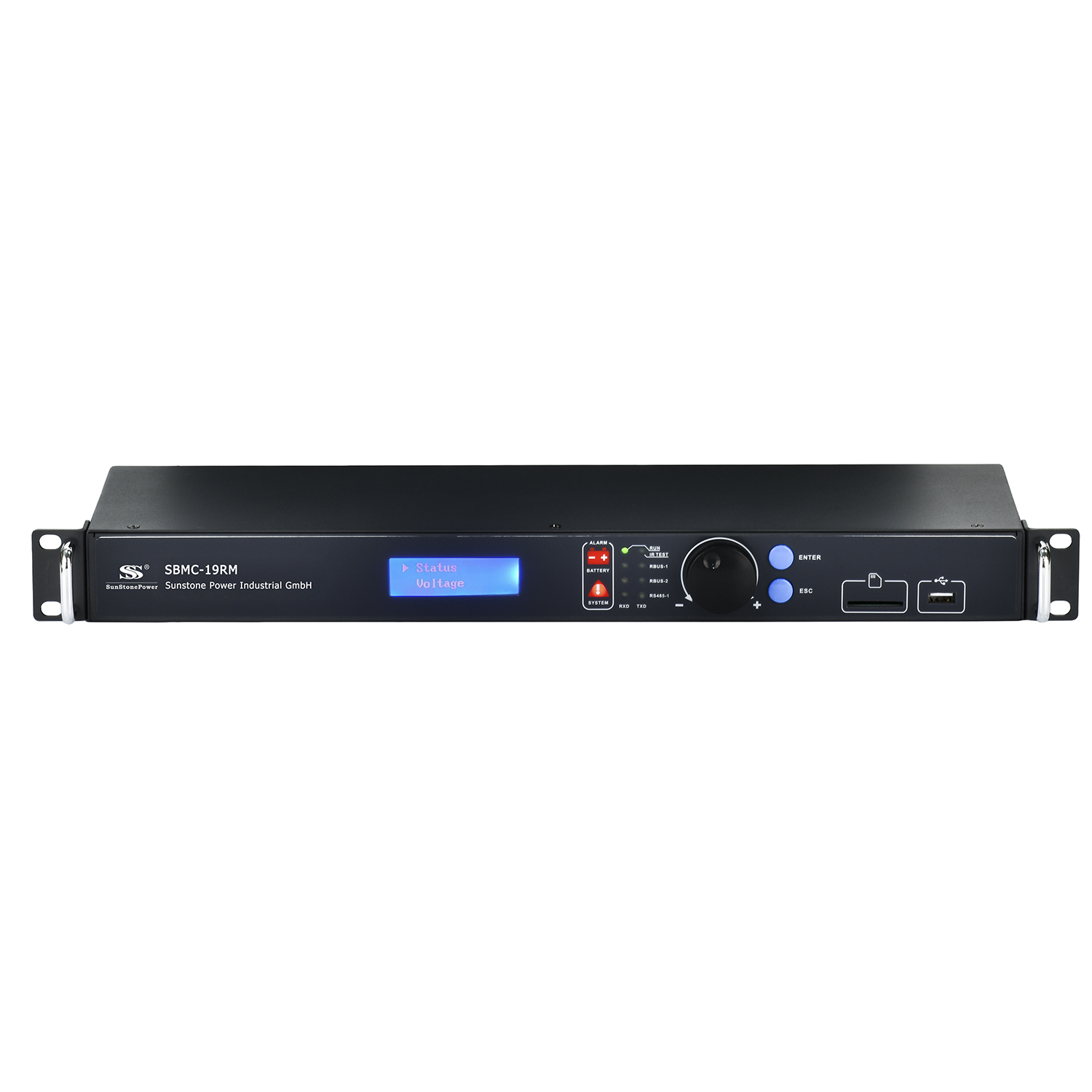

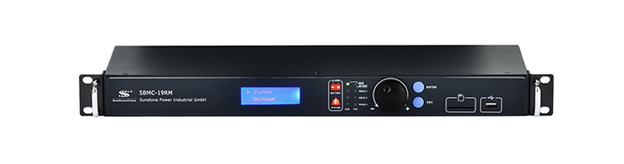

Control Module Option 2: Rack Mount 19 Inch

• Continuously data monitored, analyzed and uploaded.
• Interface: RS485, RJ45
• Protocol: Modbus TCP/RTU
• Manage up to 254 blocks batteries.

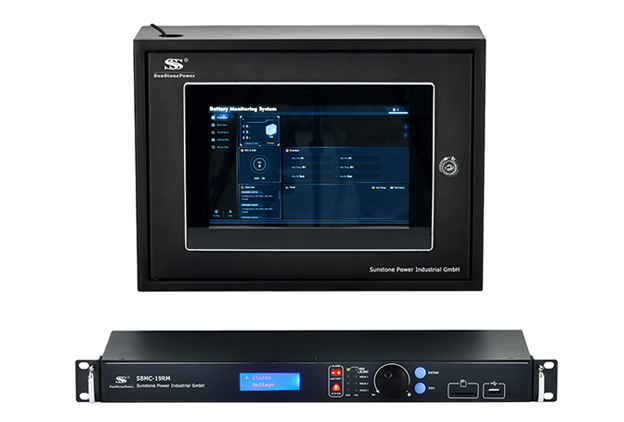

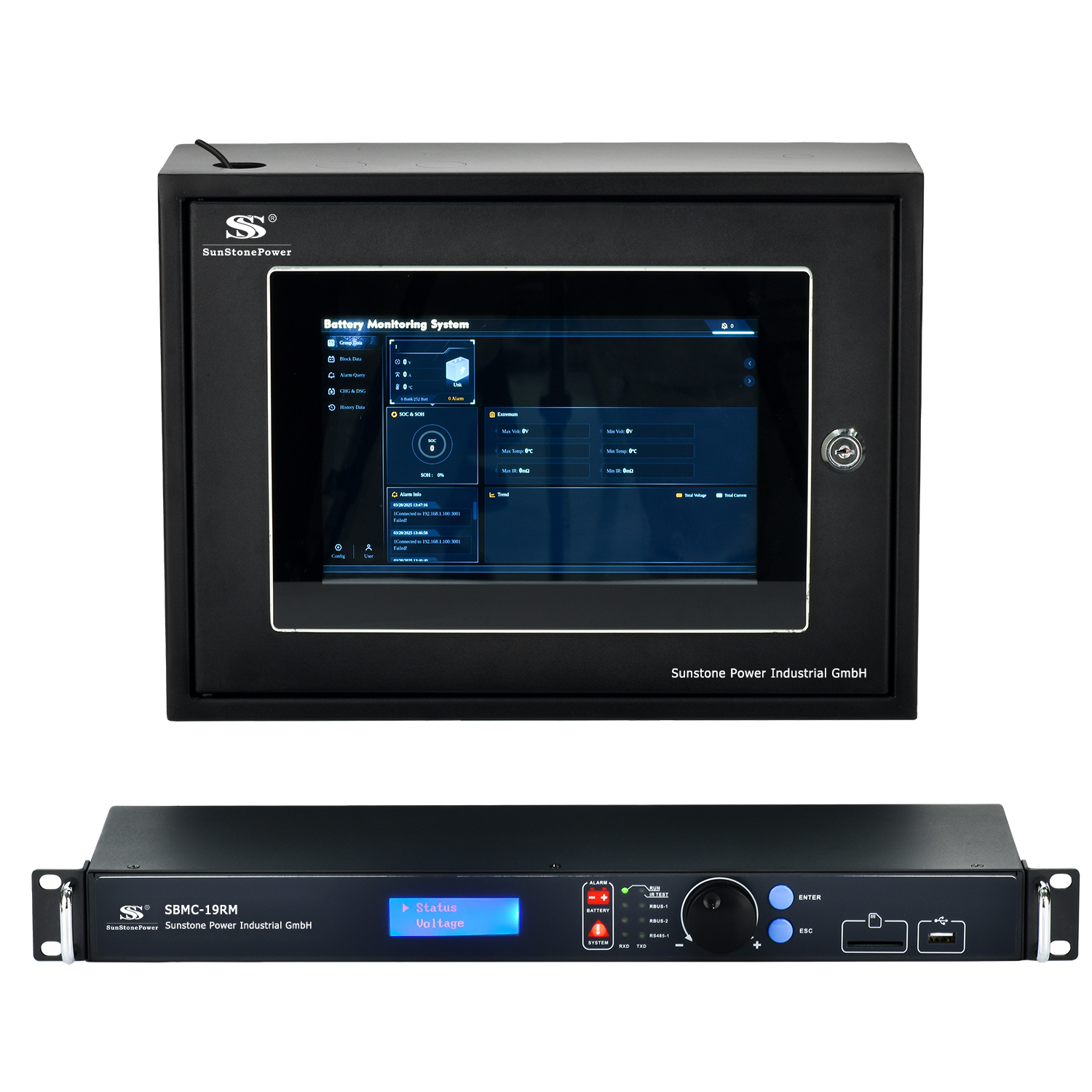

Control Module Option 3: Rack Mount+Touch Panel 10 Inch

• Manage up to 10 sets of control modules.
• Multi-dimension analysis on individual battery.
• Auto detect and store cycles of charge and discharge current.
• Store 2 years of data and 10,000 pcs of alarm for playback.
