Sunstone Power 48V 11KW Off-grid 150A MPPT Inverter Photovoltaic System

Home > Products > Inverter > Off-grid Inverter

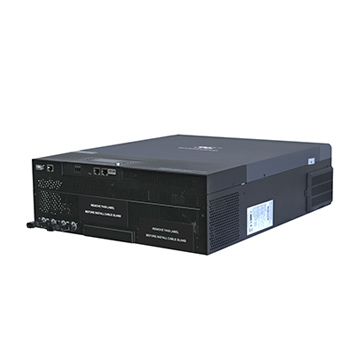

Sunstone Power 48V 11KW Off-grid 150A MPPT Inverter Photovoltaic System
sunstone power inverter solar 11KW island inverter 48V
sunstone power inverter solar 11KW island inverter 48V

48V 230V 11KW MPPT Off-Grid Solar Inverter 150A Charge Current Parallel Function SMCIH150-11KW-48V-H

  • Brand: Sunstone Power
  • Model: SMCIH150-11KW-48V-H
  • DC Voltage: 48V
  • AC Voltage: 230V
  • Rated Power: 11000VA
  • Peak Power: 22000VA
  • Feature: USB On-the-Go function, Wifi function, RS485 for BMS etc.
  • Application: Solar Energy Storage Sysytem

Product Descriptions

  • Pure sine wave output
  • Built-in Wi-Fi for mobile monitoring
  • USB On-the-Go function
  • Automatic restart when AC is restored
  • Compatible with mains or generator power

SMCIH-H Series Off-grid Inverter

The SMCIH-H series is a multifunctional charger inverter that combines the functions of the inverter, solar charger, and battery charger to provide an uninterruptible power supply in a portable size. The LCD display enables configurable and directly accessible key usage such as battery charging current, solar charger priority, and permissible input voltage based on different applications.

  • Pure sine wave output
  • Built-in Wi-Fi for mobile monitoring
  • USB On-the-Go function
  • Automatic restart when AC is restored
  • Compatible with mains or generator power

Specification

Dimension 147.4x432.5x553.6mm
Weight 18.4kg
Communication Interface USB/RS232/RS485/WiFi/Dry-contact
Rated Power 11000VA/11000W
Parallel Capability 6 units
INPUT
Voltage 230VAC
Frequency Range 50 Hz/60 Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode) 230VAC±5%
Surge Power 22000VA
Efficiency(Peak) 93%
Waveform Pure sine wave
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
SOLAR & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Power 11000W
MPPT Range @ Operating Voltage 90~450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maxmum Solar Charge Current 150A
Maximum AC Charge Current 150A
Maximum Charge Current 150A


Download PDF
